山东休普动力科技股份有限公司
来源：山东休普动力科技股份有限公司 时间：2017-04-26

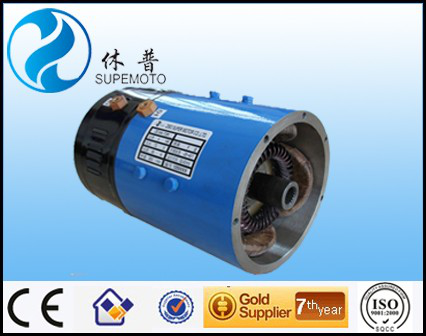

无端盖、法兰联接、凸轴伸、19齿渐开线内花键，广泛应用于游览观光车、小型电动轿车等。
注：ZC为串励 ZT为他励
串励型：
|
型号 |
额定功率 |
额定电压 |
额定电流 |
额定转速 |
额定扭矩 |
绝缘 |
防护等级 |
工作制 |
|
ZC3-48 |
3 |
48 |
78 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZC3-60 |
3 |
60 |
63 |
1500 |
19.1 |
F |
IP20 |
60min |
|
ZC3-60 |
3 |
60 |
63 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZC4-48 |
4 |
48 |
104 |
1500 |
25.4 |
F |
IP20 |
60min |
|
ZC4-48 |
4 |
48 |
104 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZC4-60 |
4 |
60 |
83 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZC4-60 |
4 |
60 |
83 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZC4-60 |
4 |
60 |
83 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZC4-72 |
4 |
72 |
69 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZC4-72 |
4 |
72 |
69 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZC4-72 |
4 |
72 |
69 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZC5-48 |
5 |
48 |
130 |
1500 |
31.8 |
F |
IP20 |
60min |
|
ZC5-48 |
5 |
48 |
130 |
2800 |
17 |
F |
IP20 |
60min |
|
ZC5-60 |
5 |
60 |
104 |
2000 |
23.8 |
F |
IP20 |
60min |
|
ZC5-60 |
5 |
60 |
104 |
2500 |
19.1 |
F |
IP20 |
60min |
|
ZC5-60 |
5 |
60 |
104 |
2800 |
17 |
F |
IP20 |
60min |
|
ZC5-72 |
5 |
72 |
87 |
2800 |
17 |
F |
IP20 |
60min |
|
ZC5-96 |
5 |
96 |
65 |
2800 |
17 |
F |
IP20 |
60min |
他励型：
|
型号 |
额定功率 |
额定电压 |
额定电流 |
额定转速 |
额定扭矩 |
绝缘 |
防护等级 |
工作制 |
|
ZT3-48 |
3 |
48 |
78 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZT3-60 |
3 |
60 |
63 |
1500 |
19.1 |
F |
IP20 |
60min |
|
ZT3-60 |
3 |
60 |
63 |
2800 |
10.2 |
F |
IP20 |
60min |
|
ZT4-48 |
4 |
48 |
104 |
1500 |
25.4 |
F |
IP20 |
60min |
|
ZT4-48 |
4 |
48 |
104 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZT4-60 |
4 |
60 |
83 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZT4-60 |
4 |
60 |
83 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZT4-60 |
4 |
60 |
83 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZT4-72 |
4 |
72 |
69 |
2000 |
19.1 |
F |
IP20 |
60min |
|
ZT4-72 |
4 |
72 |
69 |
2500 |
15.3 |
F |
IP20 |
60min |
|
ZT4-72 |
4 |
72 |
69 |
2800 |
13.6 |
F |
IP20 |
60min |
|
ZT5-48 |
5 |
48 |
130 |
1500 |
31.8 |
F |
IP20 |
60min |
|
ZT5-48 |
5 |
48 |
130 |
2800 |
17 |
F |
IP20 |
60min |
|
ZT5-60 |
5 |
60 |
104 |
2000 |
23.8 |
F |
IP20 |
60min |
|
ZT5-60 |
5 |
60 |
104 |
2500 |
19.1 |
F |
IP20 |
60min |
|
ZT5-60 |
5 |
60 |
104 |
2800 |
17 |
F |
IP20 |
60min |
|
ZT5-72 |
5 |
72 |
87 |
2800 |
17 |
F |
IP20 |
60min |
|
ZT5-96 |
5 |
96 |
65 |
2800 |
17 |
F |
IP20 |
60min |
|
型号 |
功率 |
结构特点 |
电机机座号 |
应用场合 |
规格范围 |
|

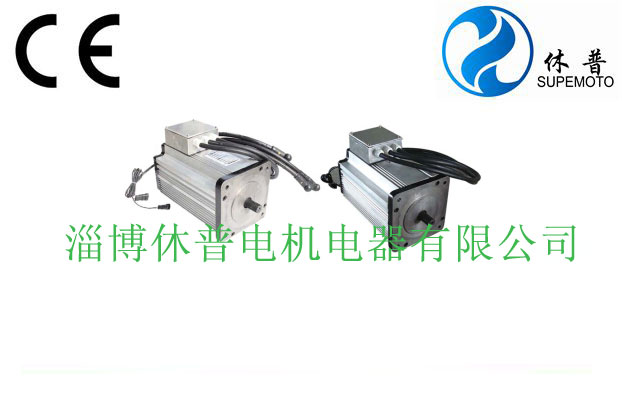

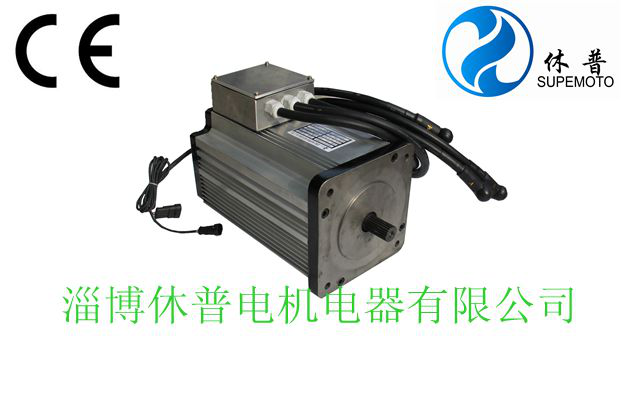

交流变频牵引电动机 |
5KW-10KW |
22齿轴、六齿外花键 |
112 |
广泛应用于电动轿车、观光车、清扫车等车辆。 |
直流电压范围：48V-96V;功率范围：5KW-0KW;最高转速：5000rpm |
电机参数：
5kw,48V,77止口，140x140 4-13安装孔
一般适合车辆净重900~1100kg，速比1:8，时速55km/h左右，爬坡20%
